2RB520-7HH57
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 4.0 |
| Voltage(V): | 345-415∆/600-720Y | Current(A): | 10.0∆/5.8Y |
| Air flow(m3/h): | 230 | Vacuum(mbar): | -390 |
| Pressure(mbar): | 440 | Sound(dB(A): | 72 |
| Weight(kg): | 44 | Inlet/outlet(inch): | G2.0 |

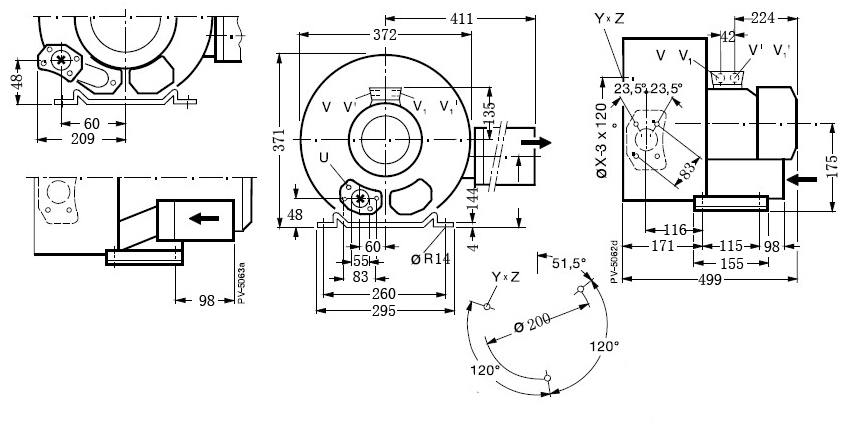

| Dimension(mm): | 499*597*371 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 4.6 |
| Voltage(V): | 380-480∆/660-720Y | Current(A): | 9.9∆/5.71Y |
| Air flow(m3/h): | 275 | Vacuum(mbar): | -410 |
| Pressure(mbar): | 480 | Sound(dB(A): | 74 |
| Weight(kg): | 44 | Inlet/outlet(inch): | G2.0 |
| Dimension(mm): | 499*597*371 |
