2RB520-7HH46
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 3.0 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 12.5∆/7.2Y |
| Air flow(m3/h): | 230 | Vacuum(mbar): | -340 |
| Pressure(mbar): | 410 | Sound(dB(A): | 72 |
| Weight(kg): | 40 | Inlet/outlet(inch): | G2.0 |

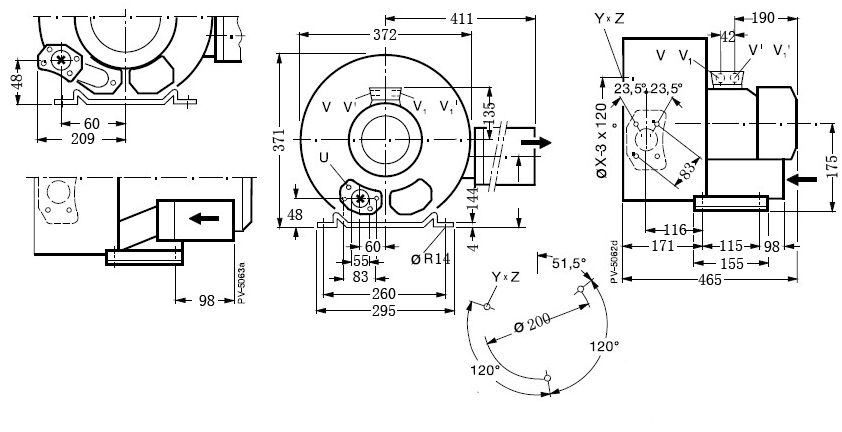

| Dimension(mm): | 465*597*371 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | Output(KW): | 3.45 | |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 12.6∆/7.3Y |
| Air flow(m3/h): | 275 | Vacuum(mbar): | -380 |
| Pressure(mbar): | 360 | Sound(dB(A): | 74 |
| Weight(kg): | 40 | Inlet/outlet(inch): | G2.0 |
| Dimension(mm): | 465*597*371 |
