2RB720-7HH16
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 2.2 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 9.7∆/5.6Y |
| Air flow(m3/h): | 320 | Vacuum(mbar): | -220 |
| Pressure(mbar): | 170 | Sound(dB(A): | 73 |
| Weight(kg): | 43 | Inlet/outlet(inch): | G2.0 |

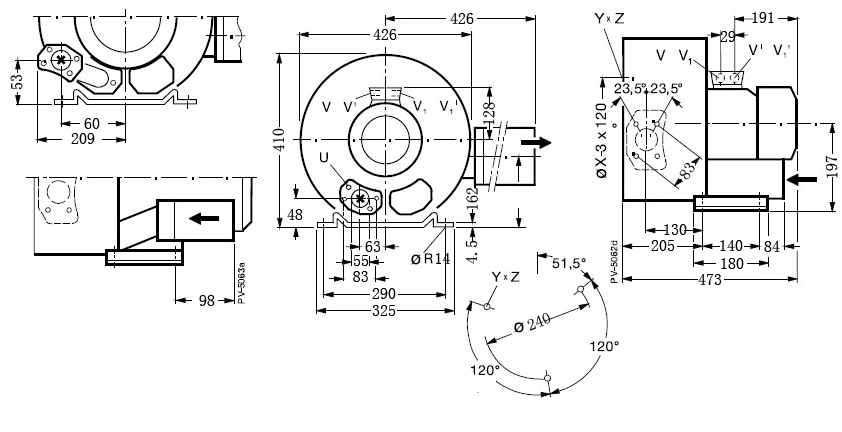

| Dimension(mm): | 473*639*410 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 2.55 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 10.3∆/6.0Y |
| Air flow(m3/h): | 380 | Vacuum(mbar): | -210 |
| Pressure(mbar): | 150 | Sound(dB(A): | 76 |
| Weight(kg): | 43 | Inlet/outlet(inch): | G2.0 |
| Dimension(mm): | 473*639*410 |
