2RB720-7HH57
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 7.5 |
| Voltage(V): | 345-415∆/600-720Y | Current(A): | 16.7∆/9.6Y |
| Air flow(m3/h): | 320 | Vacuum(mbar): | -440 |
| Pressure(mbar): | 570 | Sound(dB(A): | 73 |
| Weight(kg): | 73 | Inlet/outlet(inch): | G2.0 |

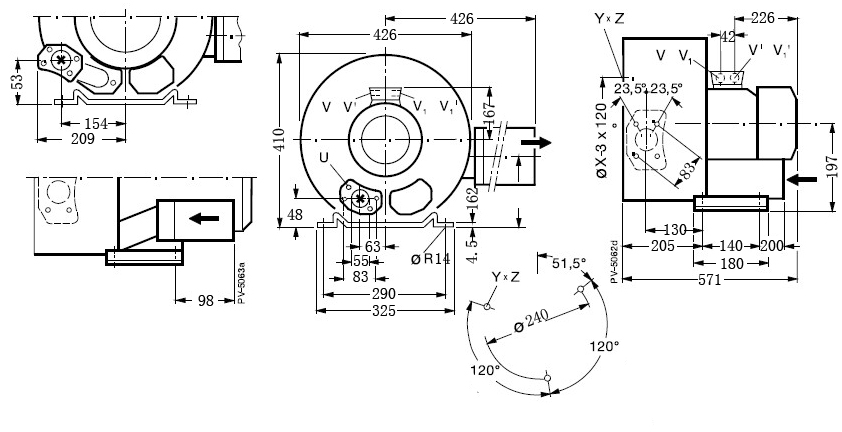

| Dimension(mm): | 571*639*410 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 8.3 |
| Voltage(V): | 380-480∆/660-720Y | Current(A): | 17.3∆/10.0Y |
| Air flow(m3/h): | 380 | Vacuum(mbar): | -460 |
| Pressure(mbar): | 660 | Sound(dB(A): | 76 |
| Weight(kg): | 73 | Inlet/outlet(inch): | G2.0 |
| Dimension(mm): | 571*639*410 |
