2RB730-7AH26
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 3.0 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 12.5∆/7.2Y |
| Air flow(m3/h): | 420 | Vacuum(mbar): | -220 |
| Pressure(mbar): | 200 | Sound(dB(A): | 70 |
| Weight(kg): | 37 | Inlet/outlet(inch): | G2.0 |

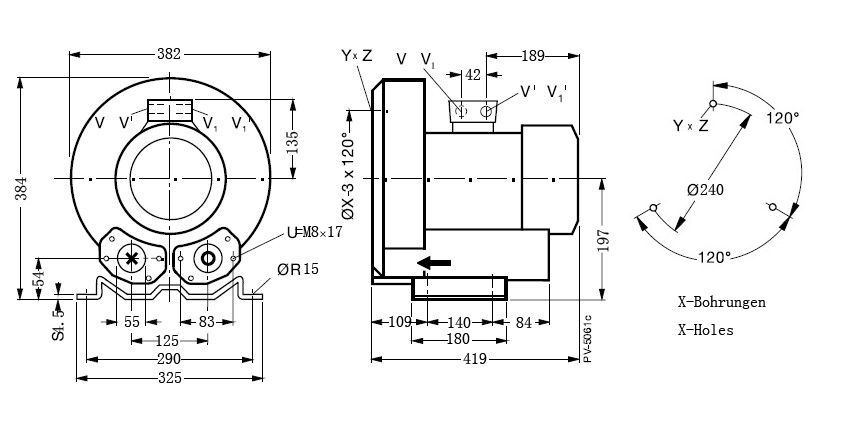

| Dimension(mm): | 419*382*384 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 3.45 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 12.6∆/7.3Y |
| Air flow(m3/h): | 500 | Vacuum(mbar): | -200 |
| Pressure(mbar): | 170 | Sound(dB(A): | 73 |
| Weight(kg): | 37 | Inlet/outlet(inch): | G2.0 |
| Dimension(mm): | 419*382*384 |
