2RB820-7HH17
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 5.5 |
| Voltage(V): | 345-415∆/600-720Y | Current(A): | 13.3∆/7.7Y |
| Air flow(m3/h): | 520 | Vacuum(mbar): | -250 |
| Pressure(mbar): | 240 | Sound(dB(A): | 74 |
| Weight(kg): | 83 | Inlet/outlet(inch): | G2.1/2 |

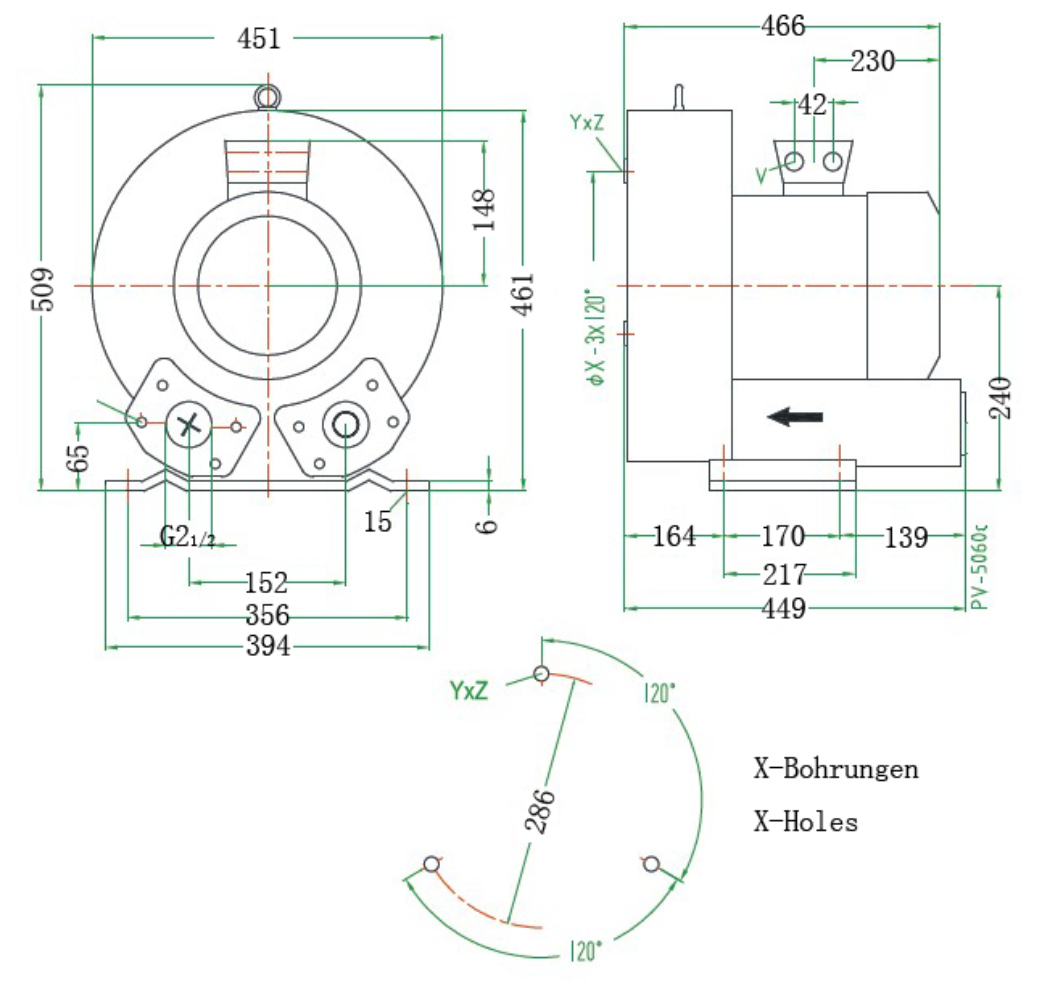

| Dimension(mm): | 589*799*509 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 6.3 |
| Voltage(V): | 380-480∆/660-720Y | Current(A): | 13.3∆/7.7Y |
| Air flow(m3/h): | 620 | Vacuum(mbar): | -170 |
| Pressure(mbar): | 160 | Sound(dB(A): | 78 |
| Weight(kg): | 83 | Inlet/outlet(inch): | G2.1/2 |
| Dimension(mm): | 589*799*509 |
