2RB830-7AH07
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 4.0 |
| Voltage(V): | 345-415∆/600-720Y | Current(A): | 9.5∆/5.5Y |
| Air flow(m3/h): | 700 | Vacuum(mbar): | -150 |
| Pressure(mbar): | 140 | Sound(dB(A): | 70 |
| Weight(kg): | 57 | Inlet/outlet(inch): | G2.1/2 |

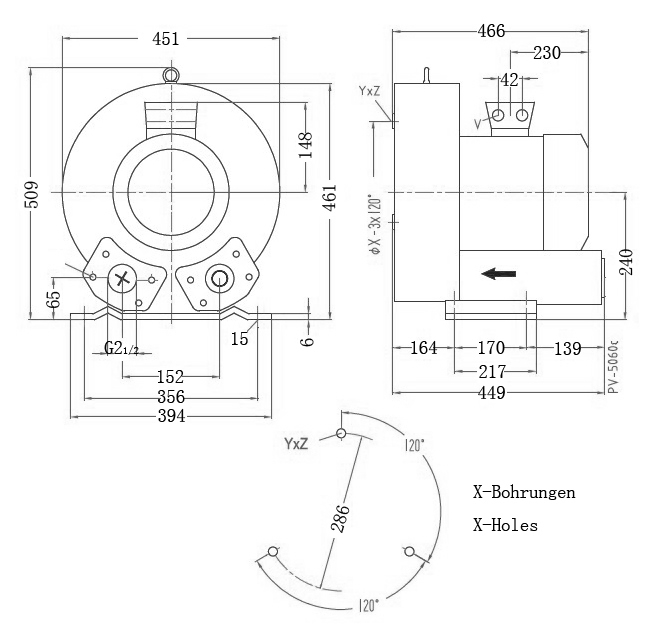

| Dimension(mm): | 466*451*509 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 4.6 |
| Voltage(V): | 380-480∆/660-720Y | Current(A): | 9.5∆/5.5Y |
| Air flow(m3/h): | 840 | Vacuum(mbar): | -90 |
| Pressure(mbar): | 90 | Sound(dB(A): | 74 |
| Weight(kg): | 57 | Inlet/outlet(inch): | G2.1/2 |
| Dimension(mm): | 466*451*509 |
