2RB840-7GH27
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 7.5 |
| Voltage(V): | 345-415∆/600-720Y | Current(A): | 16.7∆/9.6Y |
| Air flow(m3/h): | 900 | Vacuum(mbar): | -200 |
| Pressure(mbar): | 180 | Sound(dB(A): | 74 |
| Weight(kg): | 91 | Inlet/outlet(inch): | G2.1/2 |

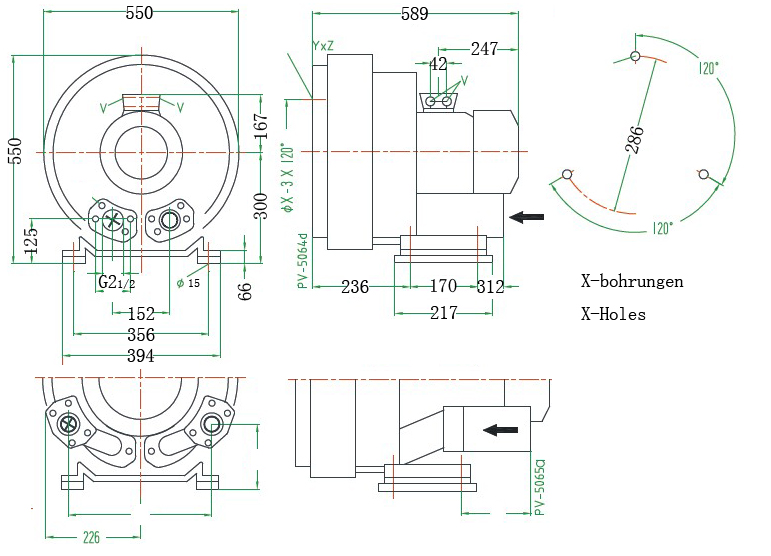

| Dimension(mm): | 589*500*550 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 8.6 |
| Voltage(V): | 380-480∆/660-720Y | Current(A): | 17.3∆/10.0Y |
| Air flow(m3/h): | 1050 | Vacuum(mbar): | -150 |
| Pressure(mbar): | 120 | Sound(dB(A): | 78 |
| Weight(kg): | 91 | Inlet/outlet(inch): | G2.1/2 |
| Dimension(mm): | 589*500*550 |
