2RB910-7AH17
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 12.5 |
| Voltage(V): | 345-415∆/600-720Y | Current(A): | 28.0∆/16.2Y |
| Air flow(m3/h): | 1050 | Vacuum(mbar): | -290 |
| Pressure(mbar): | 280 | Sound(dB(A): | 74 |
| Weight(kg): | 116 | Inlet/outlet(inch): | G4.0 |

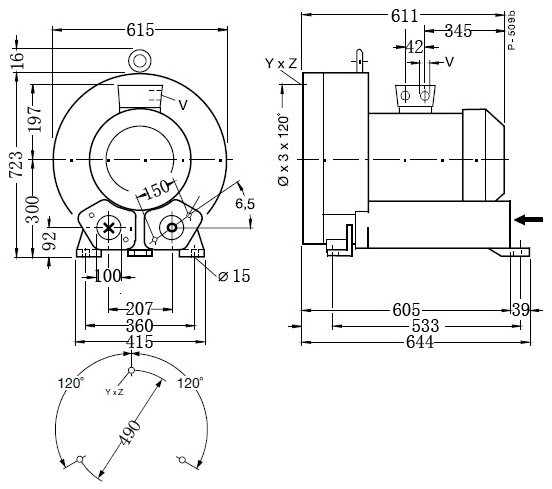

| Dimension(mm): | 644*550*624 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 14.5 |
| Voltage(V): | 380-480∆/660-720Y | Current(A): | 29.0∆/16.7Y |
| Air flow(m3/h): | 1250 | Vacuum(mbar): | -270 |
| Pressure(mbar): | 260 | Sound(dB(A): | 79 |
| Weight(kg): | 116 | Inlet/outlet(inch): | G4.0 |
| Dimension(mm): | 644*550*624 |
