2RB930-7AH37
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 18.5 |
| Voltage(V): | 345-415∆/600-720Y | Current(A): | 37.0∆/21.0Y |
| Air flow(m3/h): | 1370 | Vacuum(mbar): | -310 |
| Pressure(mbar): | 320 | Sound(dB(A): | 75 |
| Weight(kg): | 131 | Inlet/outlet(inch): | G4.0 |

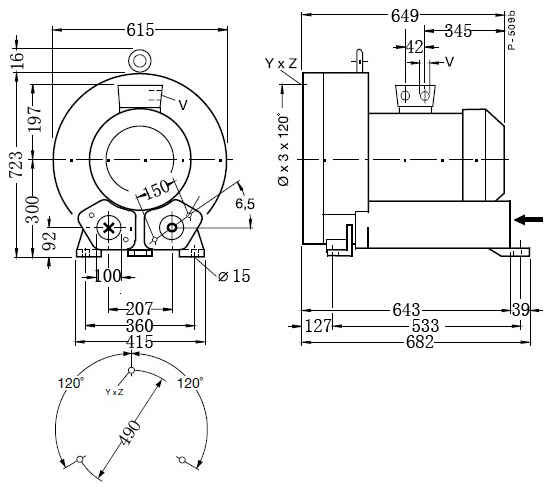

| Dimension(mm): | 682*550*624 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 21.3 |
| Voltage(V): | 380-480∆/660-720Y | Current(A): | 39.0∆/22.5Y |
| Air flow(m3/h): | 1650 | Vacuum(mbar): | -300 |
| Pressure(mbar): | 280 | Sound(dB(A): | 80 |
| Weight(kg): | 131 | Inlet/outlet(inch): | G4.0 |
| Dimension(mm): | 682*550*624 |
