2RB940-7HH27
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 15 |
| Voltage(V): | 345-415∆/600-720Y | Current(A): | 35.0∆/20.0Y |
| Air flow(m3/h): | 1940 | Vacuum(mbar): | -130 |
| Pressure(mbar): | 110 | Sound(dB(A): | 75 |
| Weight(kg): | 187 | Inlet/outlet(inch): | G4.0 |

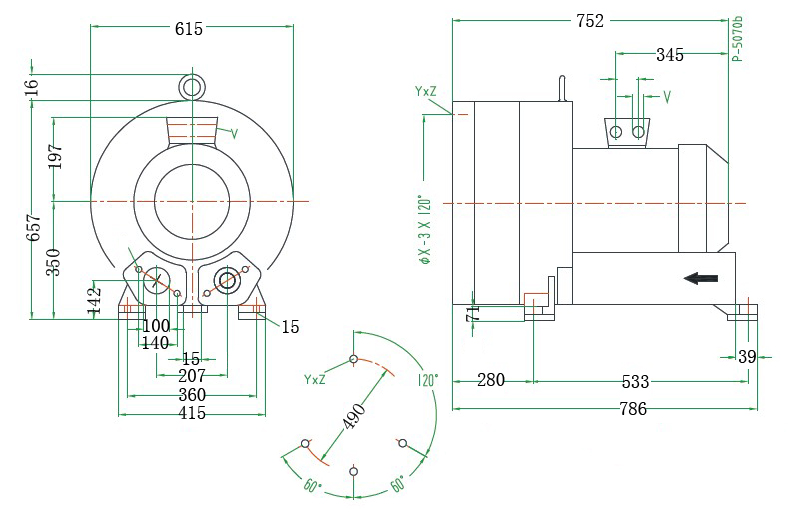

| Dimension(mm): | 786*615*673 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 17.5 |
| Voltage(V): | 380-480∆/660-720Y | Current(A): | 36.5∆/21.0Y |
| Air flow(m3/h): | 2310 | Vacuum(mbar): | -60 |
| Pressure(mbar): | 40 | Sound(dB(A): | 84 |
| Weight(kg): | 187 | Inlet/outlet(inch): | G4.0 |
| Dimension(mm): | 786*615*673 |
