4RB310-0AH26-7
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 0.81 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 4.0∆/2.3Y |
| Air flow(m3/h): | 66 | Vacuum(mbar): | -280 |
| Pressure(mbar): | 350 | Sound(dB(A): | 57 |
| Weight(kg): | 17 | Inlet/outlet(inch): | G1.1/4 |

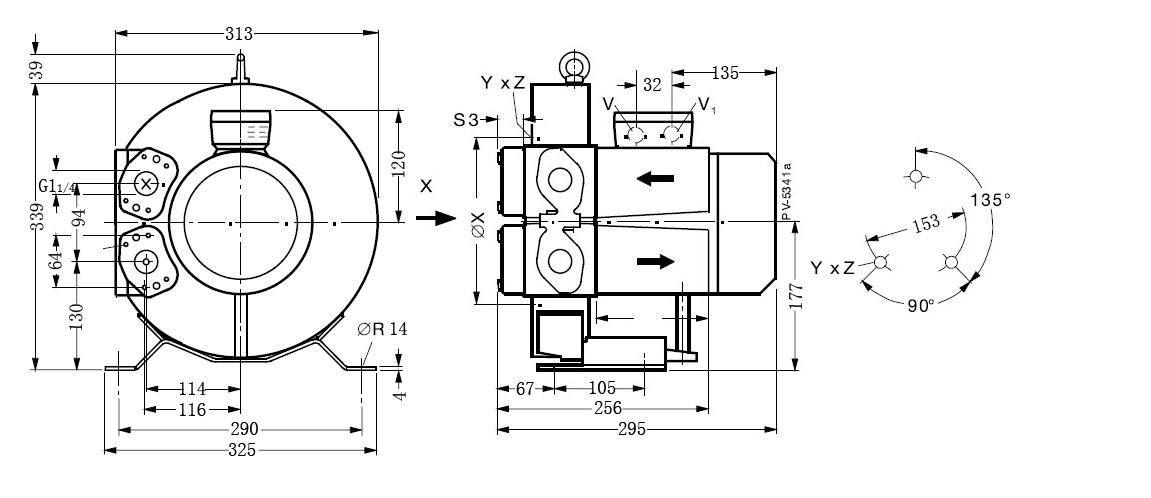

| Dimension(mm): | 295*313*339 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 0.94 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 4.0∆/2.3Y |
| Air flow(m3/h): | 80 | Vacuum(mbar): | -340 |
| Pressure(mbar): | 360 | Sound(dB(A): | 62 |
| Weight(kg): | 17 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 295*313*339 |
