4RB320-0AV75-7
50Hz
| Stage: | Double | Phase: | 1AC |
| Frequency(HZ) : | 50 | Output(KW): | 1.5 |
| Voltage(V): | 200-240V | Current(A): | 19.4/9.7 |
| Air flow(m3/h): | Vacuum(mbar): | -400 | |
| Pressure(mbar): | 550 | Sound(dB(A): | 55 |
| Weight(kg): | 32 | Inlet/outlet(inch): | G1.1/4 |

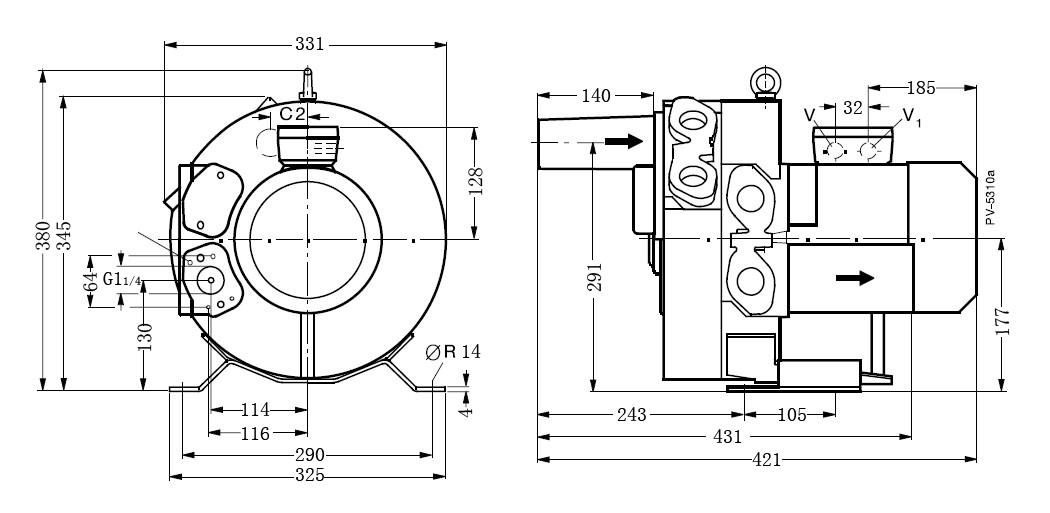

| Dimension(mm): | 421*331*380 |
60Hz
| Stage: | Double | Phase: | 1AC |
| Frequency(HZ): | 60 | Output(KW): | 1.75 |
| Voltage(V): | 200-240V | Current(A): | 20.6/10.3 |
| Air flow(m3/h): | Vacuum(mbar): | -390 | |
| Pressure(mbar): | 540 | Sound(dB(A): | 60 |
| Weight(kg): | 32 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 421*331*380 |
