4RB320-0AH46-7
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 1.1 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 5.4∆/3.1Y |
| Air flow(m3/h): | 65 | Vacuum(mbar): | -400 |
| Pressure(mbar): | 480 | Sound(dB(A): | 59 |
| Weight(kg): | 29 | Inlet/outlet(inch): | G1.1/4 |

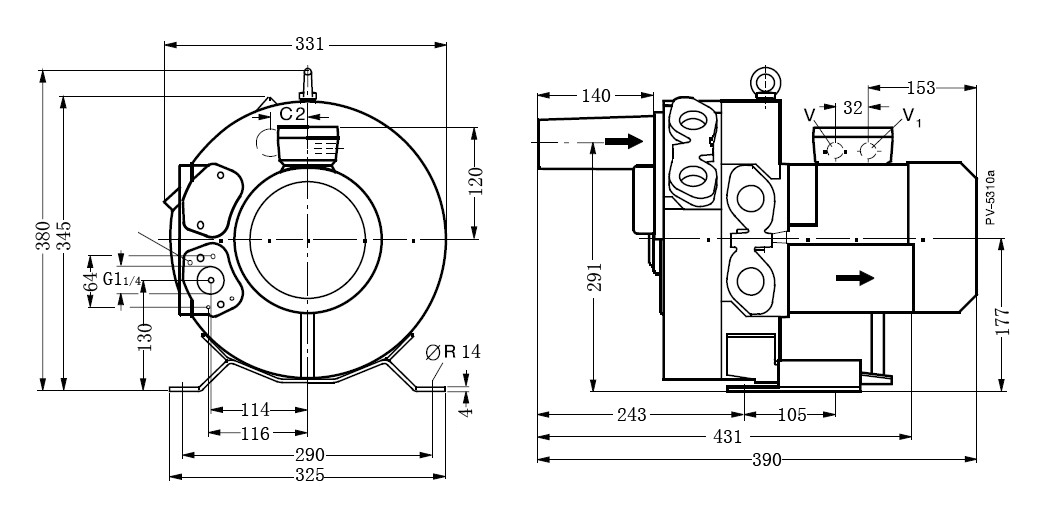

| Dimension(mm): | 390*331*380 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 1.3 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 5.4∆/3.1Y |
| Air flow(m3/h): | 76 | Vacuum(mbar): | -480 |
| Pressure(mbar): | 480 | Sound(dB(A): | 63 |
| Weight(kg): | 29 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 390*331*380 |
