4RB420-0AH26-7
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 1.5 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 7.5∆/4.3Y |
| Air flow(m3/h): | 87 | Vacuum(mbar): | -480 |
| Pressure(mbar): | 450 | Sound(dB(A): | 61 |
| Weight(kg): | 33 | Inlet/outlet(inch): | G1.1/4 |

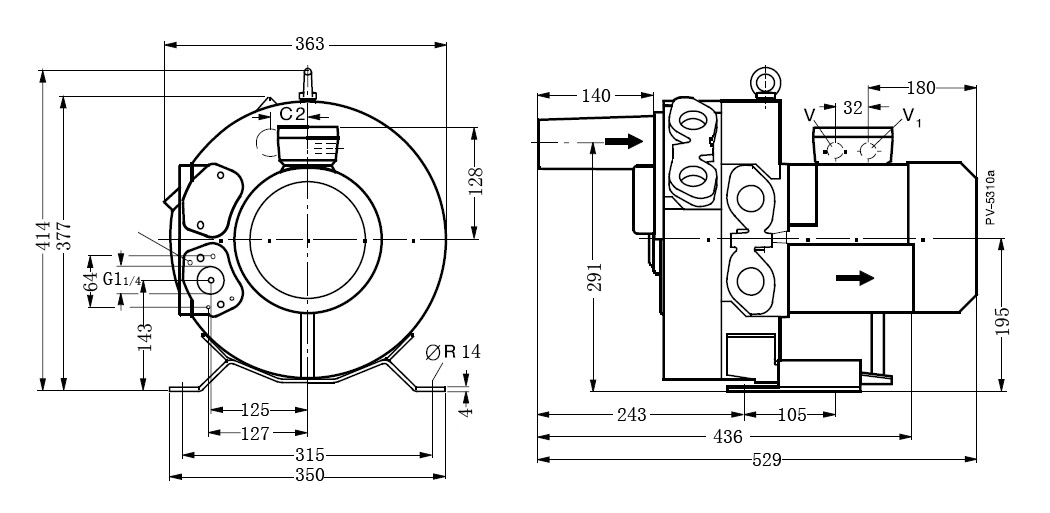

| Dimension(mm): | 529*363*414 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 1.75 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 7.6∆/4.4Y |
| Air flow(m3/h): | 105 | Vacuum(mbar): | -430 |
| Pressure(mbar): | 410 | Sound(dB(A): | 66 |
| Weight(kg): | 33 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 529*363*414 |
