4RB520-0AH26-8
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 2.2 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 11.4∆/6.6Y |
| Air flow(m3/h): | 120 | Vacuum(mbar): | -470 |
| Pressure(mbar): | 460 | Sound(dB(A): | 64 |
| Weight(kg): | 42 | Inlet/outlet(inch): | G1.1/4 |

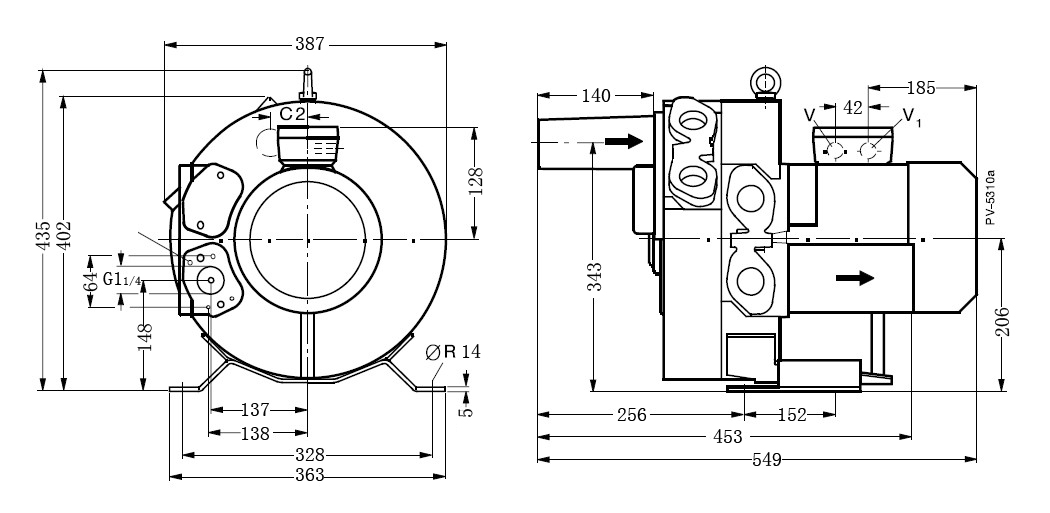

| Dimension(mm): | 549*387*435 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 2.55 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 11.2∆/6.5Y |
| Air flow(m3/h): | 145 | Vacuum(mbar): | -500 |
| Pressure(mbar): | 450 | Sound(dB(A): | 70 |
| Weight(kg): | 42 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 549*387*435 |
