4RB520-0AH77-8
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 4.0 |
| Voltage(V): | 345-415∆ | Current(A): | 9.0 |
| Air flow(m3/h): | 120 | Vacuum(mbar): | -500 |
| Pressure(mbar): | 820 | Sound(dB(A): | 64 |
| Weight(kg): | 52 | Inlet/outlet(inch): | G1.1/4 |

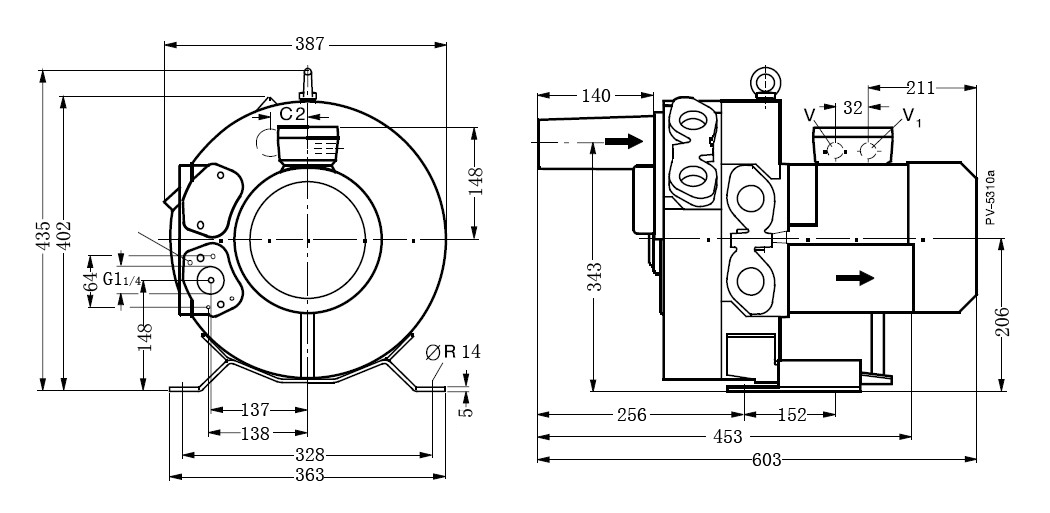

| Dimension(mm): | 603*387*435 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 4.6 |
| Voltage(V): | 380-480∆ | Current(A): | 9.5 |
| Air flow(m3/h): | 145 | Vacuum(mbar): | -530 |
| Pressure(mbar): | 810 | Sound(dB(A): | 70 |
| Weight(kg): | 52 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 603*387*435 |
