4RB530-0AH87-8
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 5.5 |
| Voltage(V): | 345-415∆ | Current(A): | 9.5 |
| Air flow(m3/h): | 120 | Vacuum(mbar): | -680 |
| Pressure(mbar): | 1000 | Sound(dB(A): | 67 |
| Weight(kg): | 68 | Inlet/outlet(inch): | G1.1/4 |

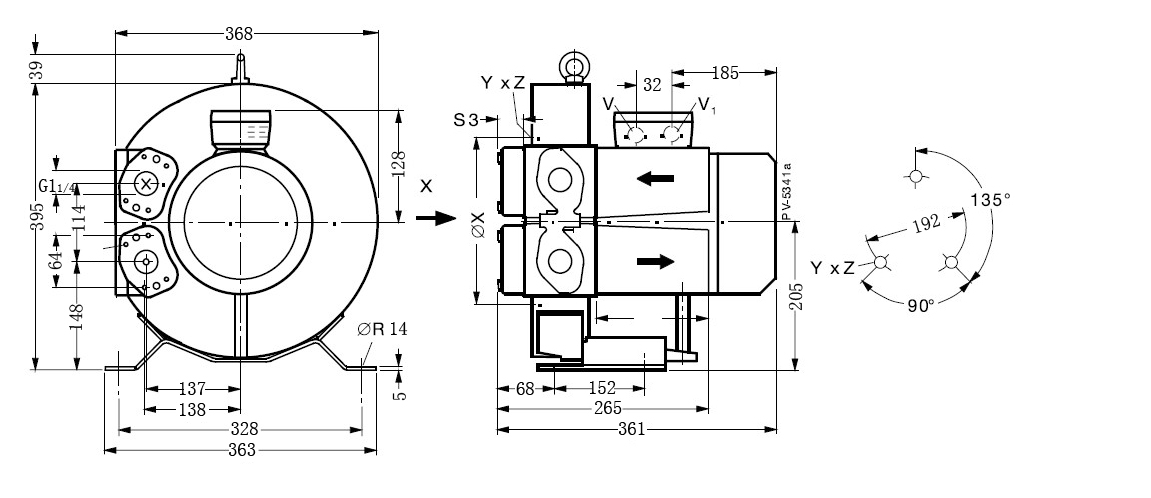

| Dimension(mm): | 717*442*492 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 6.3 |
| Voltage(V): | 380-480∆ | Current(A): | 12.9 |
| Air flow(m3/h): | 145 | Vacuum(mbar): | -640 |
| Pressure(mbar): | 1030 | Sound(dB(A): | 73 |
| Weight(kg): | 68 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 717*442*492 |
