4RB620-0AH36-8
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 3.3 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 13∆/7.5Y |
| Air flow(m3/h): | 165 | Vacuum(mbar): | -460 |
| Pressure(mbar): | 500 | Sound(dB(A): | 67 |
| Weight(kg): | 48 | Inlet/outlet(inch): | G1.1/4 |

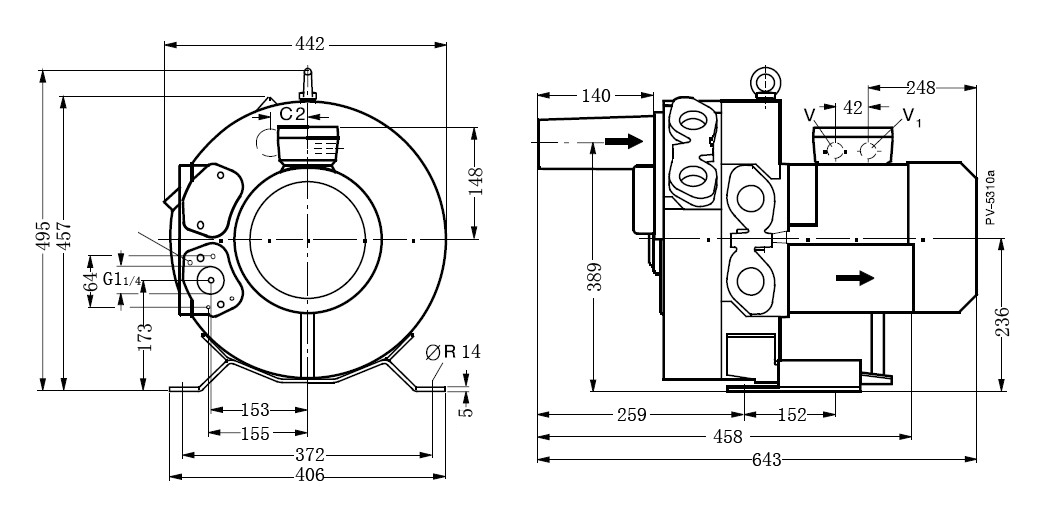

| Dimension(mm): | 578*442*495 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 3.8 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 14..2∆/8.2Y |
| Air flow(m3/h): | 195 | Vacuum(mbar): | -480 |
| Pressure(mbar): | 420 | Sound(dB(A): | 71 |
| Weight(kg): | 48 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 578*442*495 |
