2RB230-7AV15
50Hz
| Stage: | single | Phase: | 1AC |
| Frequency(HZ) : | 50 | Output(KW): | 0.37 |
| Voltage(V): | 115-230V | Current(A): | 5.4/2.7 |
| Air flow(m3/h): | 101 | Vacuum(mbar): | -110 |
| Pressure(mbar): | 110 | Sound(dB(A): | 54 |
| Weight(kg): | 11 | Inlet/outlet(inch): | G1.1/4 |

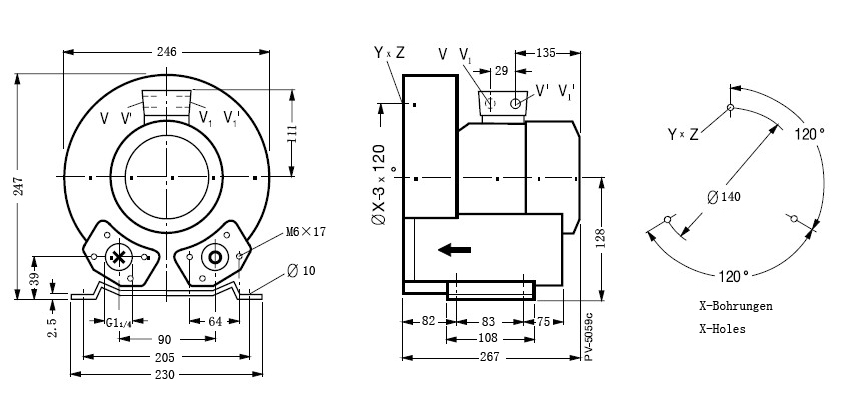

| Dimension(mm): | 267*246*247 |
60Hz
| Stage: | single | Phase: | 1AC |
| Frequency(HZ): | 60 | Output(KW): | 0.45 |
| Voltage(V): | 200-240V | Current(A): | 6.0/3.0 |
| Air flow(m3/h): | 121 | Vacuum(mbar): | -130 |
| Pressure(mbar): | 140 | Sound(dB(A): | 57 |
| Weight(kg): | 11 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 267*246*247 |
