2RB230-7AH06
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 0.25 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 2.1∆/1.2Y |
| Air flow(m3/h): | 105 | Vacuum(mbar): | -80 |
| Pressure(mbar): | 70 | Sound(dB(A): | 54 |
| Weight(kg): | 9 | Inlet/outlet(inch): | G1.1/4 |

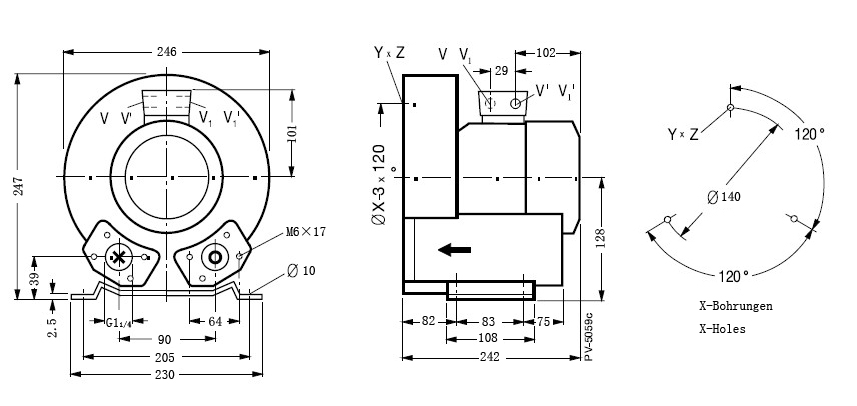

| Dimension(mm): | 242*246*247 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 0.29 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 1.7∆/1.0Y |
| Air flow(m3/h): | 120 | Vacuum(mbar): | -90 |
| Pressure(mbar): | 80 | Sound(dB(A): | 58 |
| Weight(kg): | 9 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 242*246*247 |
