2RB230-7AH26
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 0.70 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 3.8∆/2.2Y |
| Air flow(m3/h): | 105 | Vacuum(mbar): | -120 |
| Pressure(mbar): | 140 | Sound(dB(A): | 4 |
| Weight(kg): | 11 | Inlet/outlet(inch): | G1.1/4 |

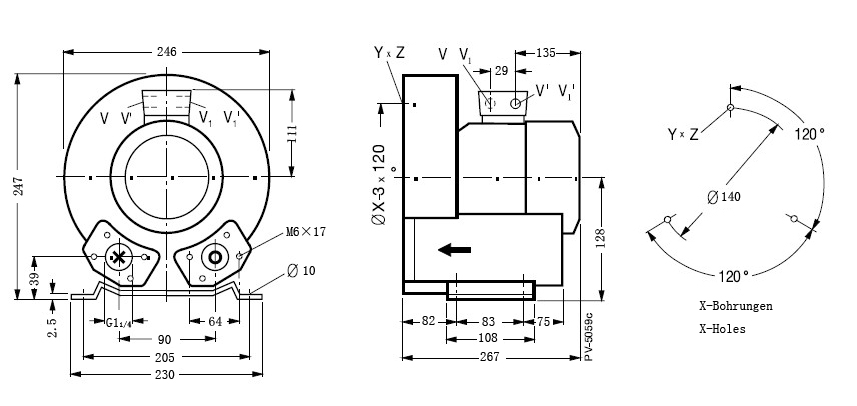

| Dimension(mm): | 267*246*247 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 0.83 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 3.8∆/2.2Y |
| Air flow(m3/h): | 120 | Vacuum(mbar): | -160 |
| Pressure(mbar): | 180 | Sound(dB(A): | 57 |
| Weight(kg): | 11 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 267*246*247 |
