2RB330-7AH06
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 0.55 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 2.8∆/1.6Y |
| Air flow(m3/h): | 140 | Vacuum(mbar): | -60 |
| Pressure(mbar): | 60 | Sound(dB(A): | 56 |
| Weight(kg): | 12 | Inlet/outlet(inch): | G1.1/4 |

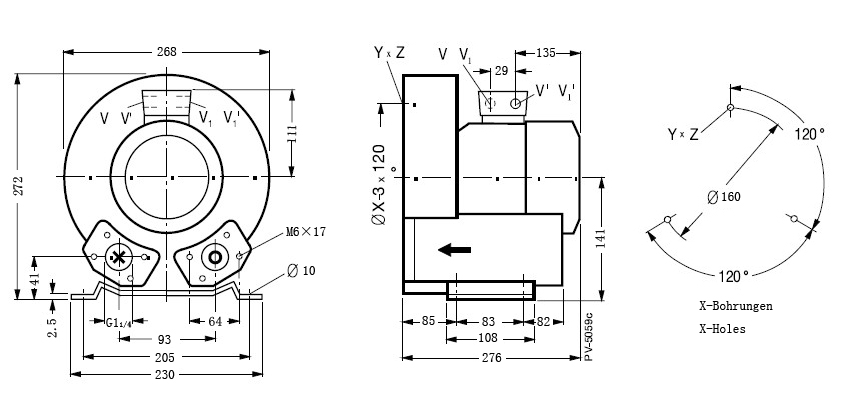

| Dimension(mm): | 276*268*272 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 0.63 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 2.8∆/1.6Y |
| Air flow(m3/h): | 165 | Vacuum(mbar): | -50 |
| Pressure(mbar): | 50 | Sound(dB(A): | 58 |
| Weight(kg): | 12 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 276*268*272 |
