2RB410-7AH16
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 0.85 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 4.0∆/2.3Y |
| Air flow(m3/h): | 145 | Vacuum(mbar): | -160 |
| Pressure(mbar): | 160 | Sound(dB(A): | 63 |
| Weight(kg): | 16 | Inlet/outlet(inch): | G1.1/2 |

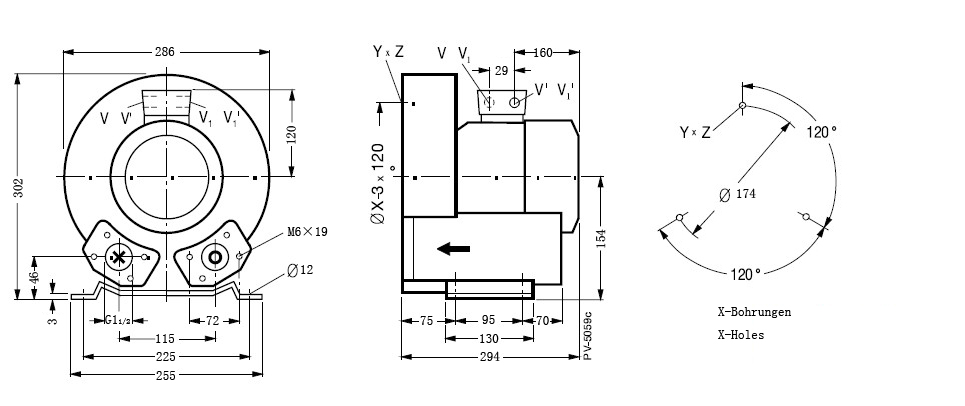

| Dimension(mm): | 292*286*302 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 0.95 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 3.85∆/2.25Y |
| Air flow(m3/h): | 175 | Vacuum(mbar): | -160 |
| Pressure(mbar): | 160 | Sound(dB(A): | 64 |
| Weight(kg): | 16 | Inlet/outlet(inch): | G1.1/2 |
| Dimension(mm): | 292*286*302 |
