2RB420-7AV45
50Hz
| Stage: | Double | Phase: | 1AC |
| Frequency(HZ) : | 50 | Output(KW): | 1.5 |
| Voltage(V): | 115/230 | Current(A): | 22/11 |
| Air flow(m3/h): | 150 | Vacuum(mbar): | -250 |
| Pressure(mbar): | 260 | Sound(dB(A): | 66 |
| Weight(kg): | 27 | Inlet/outlet(inch): | G1.1/2 |

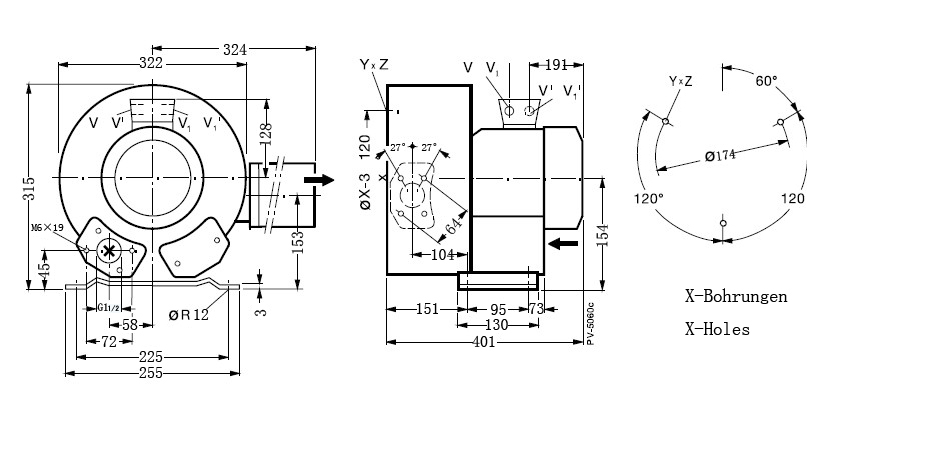

| Dimension(mm): | 401*485*315 |
60Hz
| Stage: | Double | Phase: | 1AC |
| Frequency(HZ): | 60 | Output(KW): | 1.75 |
| Voltage(V): | 115/230 | Current(A): | 24/12 |
| Air flow(m3/h): | 190 | Vacuum(mbar): | -250 |
| Pressure(mbar): | 270 | Sound(dB(A): | 69 |
| Weight(kg): | 27 | Inlet/outlet(inch): | G1.1/2 |
| Dimension(mm): | 401*485*315 |
