2RB420-7HH36
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 1.6 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 7.5∆/4.3Y |
| Air flow(m3/h): | 150 | Vacuum(mbar): | -320 |
| Pressure(mbar): | 310 | Sound(dB(A): | 66 |
| Weight(kg): | 25 | Inlet/outlet(inch): | G1.1/2 |

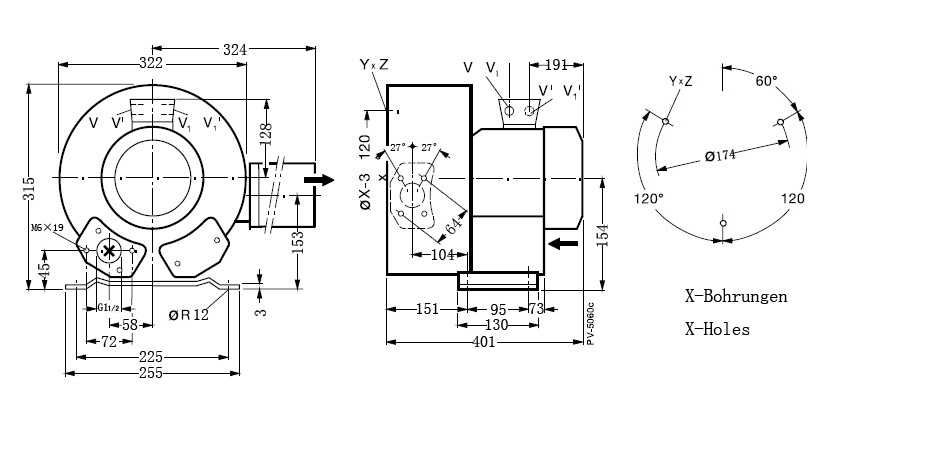

| Dimension(mm): | 401*485*315 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 2.05 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 7.6∆/4.4Y |
| Air flow(m3/h): | 180 | Vacuum(mbar): | -330 |
| Pressure(mbar): | 420 | Sound(dB(A): | 69 |
| Weight(kg): | 25 | Inlet/outlet(inch): | G1.1/2 |
| Dimension(mm): | 401*485*315 |
