2RB010-7AH06
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 0.2 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 2.1∆/1.2Y |
| Air flow(m3/h): | 70 | Vacuum(mbar): | -100 |
| Pressure(mbar): | 100 | Sound(dB(A): | 48 |
| Weight(kg): | 6 | Inlet/outlet(inch): | G1.0 |

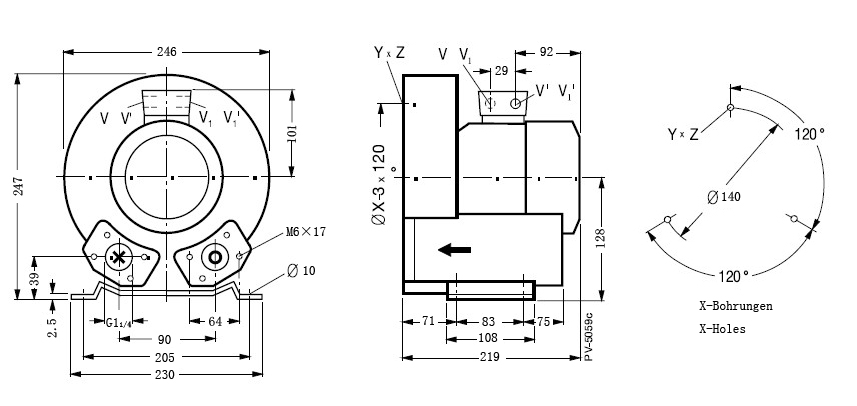

| Dimension(mm): | 242*213*225 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 0.23 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 2.10∆/1.15Y |
| Air flow(m3/h): | 85 | Vacuum(mbar): | -120 |
| Pressure(mbar): | 120 | Sound(dB(A): | 50 |
| Weight(kg): | 6 | Inlet/outlet(inch): | G1.0 |
| Dimension(mm): | 242*213*225 |
