2RB510-7AH06
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 0.85 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 4.0∆/2.3Y |
| Air flow(m3/h): | 210 | Vacuum(mbar): | -110 |
| Pressure(mbar): | 100 | Sound(dB(A): | 64 |
| Weight(kg): | 20 | Inlet/outlet(inch): | G2.0 |

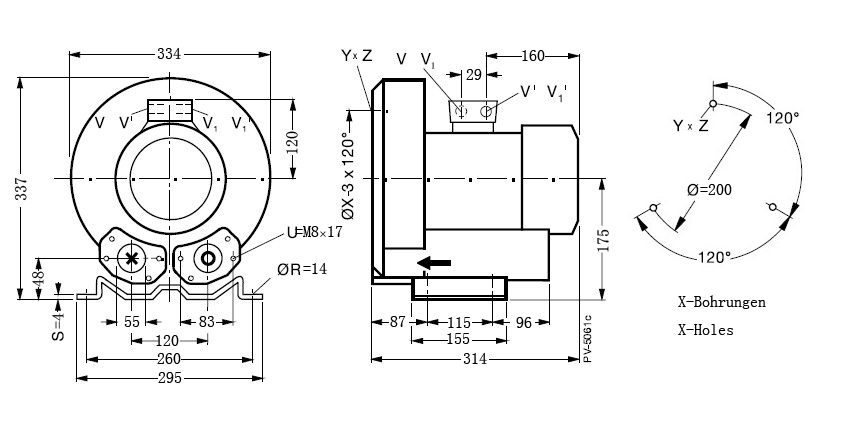

| Dimension(mm): | 314*334*337 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 0.95 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 4.0∆/2.3Y |
| Air flow(m3/h): | 255 | Vacuum(mbar): | -80 |
| Pressure(mbar): | 70 | Sound(dB(A): | 70 |
| Weight(kg): | 20 | Inlet/outlet(inch): | G2.0 |
| Dimension(mm): | 314*334*337 |
