2RB510-7AH26
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 1.6 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 7.5∆/4.3Y |
| Air flow(m3/h): | 210 | Vacuum(mbar): | -200 |
| Pressure(mbar): | 190 | Sound(dB(A): | 64 |
| Weight(kg): | 23 | Inlet/outlet(inch): | G2.0 |

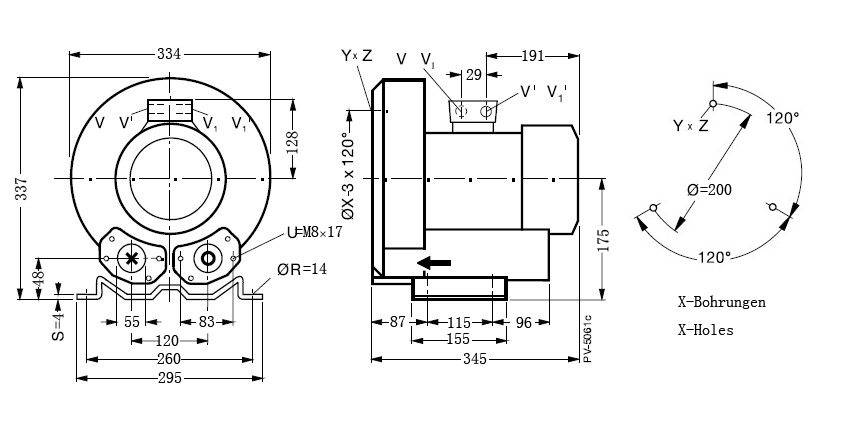

| Dimension(mm): | 314*334*337 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 2.05 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 7.6∆/4.4Y |
| Air flow(m3/h): | 255 | Vacuum(mbar): | -220 |
| Pressure(mbar): | 210 | Sound(dB(A): | 70 |
| Weight(kg): | 23 | Inlet/outlet(inch): | G2.0 |
| Dimension(mm): | 314*334*337 |
