2RB430-7AA21
50Hz
| Stage: | single | Phase: | 1AC |
| Frequency(HZ) : | 50 | Output(KW): | 1.1 |
| Voltage(V): | 200-240V | Current(A): | 7.3 |
| Air flow(m3/h): | 180 | Vacuum(mbar): | -150 |
| Pressure(mbar): | 140 | Sound(dB(A): | 64 |
| Weight(kg): | 17 | Inlet/outlet(inch): | G1.1/2 |

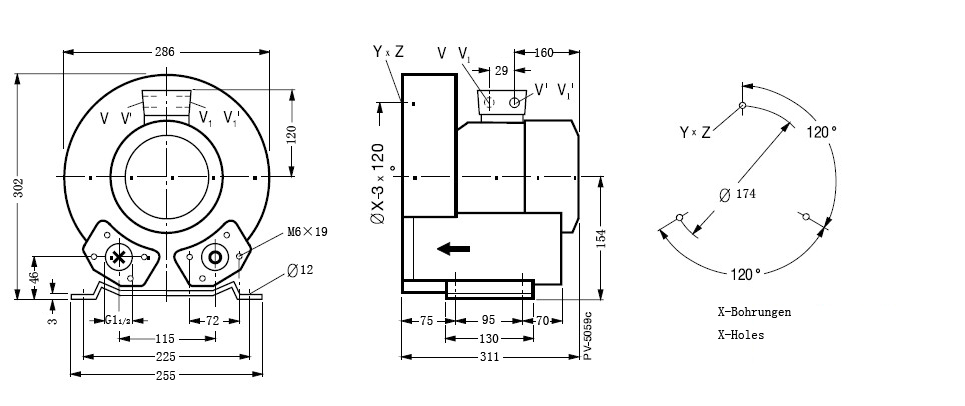

| Dimension(mm): | 311*286*302 |
60Hz
| Stage: | single | Phase: | 1AC |
| Frequency(HZ): | 60 | Output(KW): | 1.3 |
| Voltage(V): | 200-240V | Current(A): | 8.3 |
| Air flow(m3/h): | 210 | Vacuum(mbar): | -140 |
| Pressure(mbar): | 130 | Sound(dB(A): | 66 |
| Weight(kg): | 17 | Inlet/outlet(inch): | G1.1/2 |
| Dimension(mm): | 311*286*302 |
