2RB220-7HH26
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 0.7 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 3.8∆/2.2Y |
| Air flow(m3/h): | 85 | Vacuum(mbar): | -210 |
| Pressure(mbar): | 240 | Sound(dB(A): | 55 |
| Weight(kg): | 16 | Inlet/outlet(inch): | G1.1/4 |

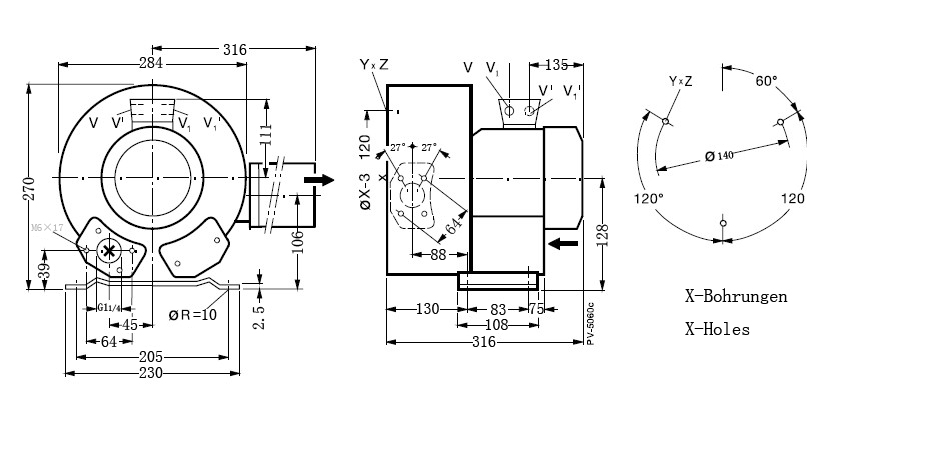

| Dimension(mm): | 316*458*270 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 0.83 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 3.75∆/2.15Y |
| Air flow(m3/h): | 102 | Vacuum(mbar): | -250 |
| Pressure(mbar): | 250 | Sound(dB(A): | 56 |
| Weight(kg): | 16 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 316*458*270 |
