2RB320-7HA31
50Hz
| Stage: | Double | Phase: | 1AC |
| Frequency(HZ) : | 50 | Output(KW): | 1.1 |
| Voltage(V): | 200-240V | Current(A): | 7.3 |
| Air flow(m3/h): | 120 | Vacuum(mbar): | -240 |
| Pressure(mbar): | 280 | Sound(dB(A): | 58 |
| Weight(kg): | 17 | Inlet/outlet(inch): | G1.1/4 |

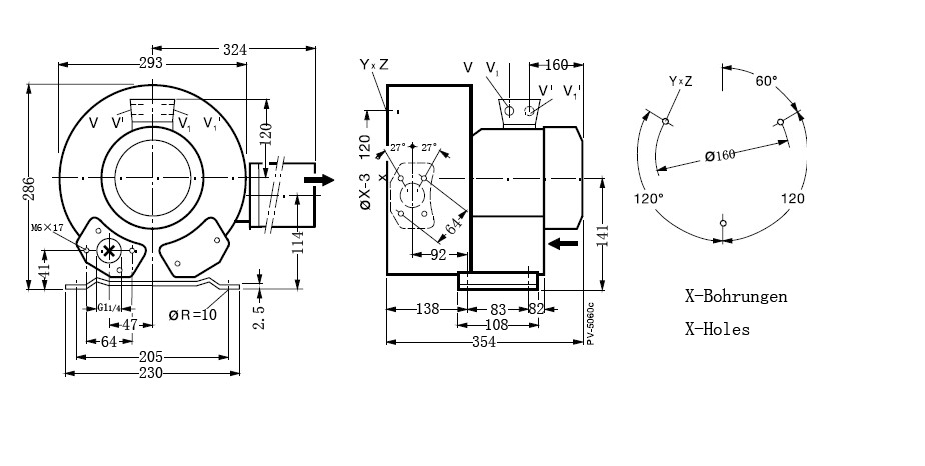

| Dimension(mm): | 354*471*286 |
60Hz
| Stage: | Double | Phase: | 1AC |
| Frequency(HZ): | 60 | Output(KW): | 1.3 |
| Voltage(V): | 200-240V | Current(A): | 8.3 |
| Air flow(m3/h): | 145 | Vacuum(mbar): | -230 |
| Pressure(mbar): | 260 | Sound(dB(A): | 60 |
| Weight(kg): | 17 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 354*471*286 |
