2RB320-7HH26
50Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 0.85 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 4.2∆/2..4Y |
| Air flow(m3/h): | 110 | Vacuum(mbar): | -200 |
| Pressure(mbar): | 230 | Sound(dB(A): | 58 |
| Weight(kg): | 17 | Inlet/outlet(inch): | G1.1/4 |

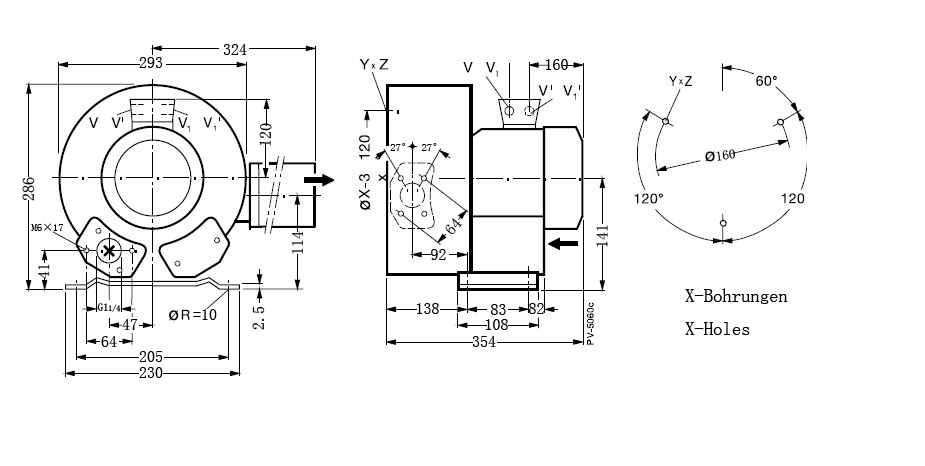

| Dimension(mm): | 316*458*270 |
60Hz
| Stage: | Double | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 0.95 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 4.0∆/2.3Y |
| Air flow(m3/h): | 130 | Vacuum(mbar): | -240 |
| Pressure(mbar): | 240 | Sound(dB(A): | 60 |
| Weight(kg): | 17 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 316*458*270 |
