4RB210-0AV75-7
50Hz
| Stage: | single | Phase: | 1AC |
| Frequency(HZ) : | 50 | Output(KW): | 0.55 |
| Voltage(V): | 115/230V | Current(A): | 13/3.1 |
| Air flow(m3/h): | 47 | Vacuum(mbar): | -230 |
| Pressure(mbar): | 290 | Sound(dB(A): | 57 |
| Weight(kg): | 18 | Inlet/outlet(inch): | G1.1/4 |

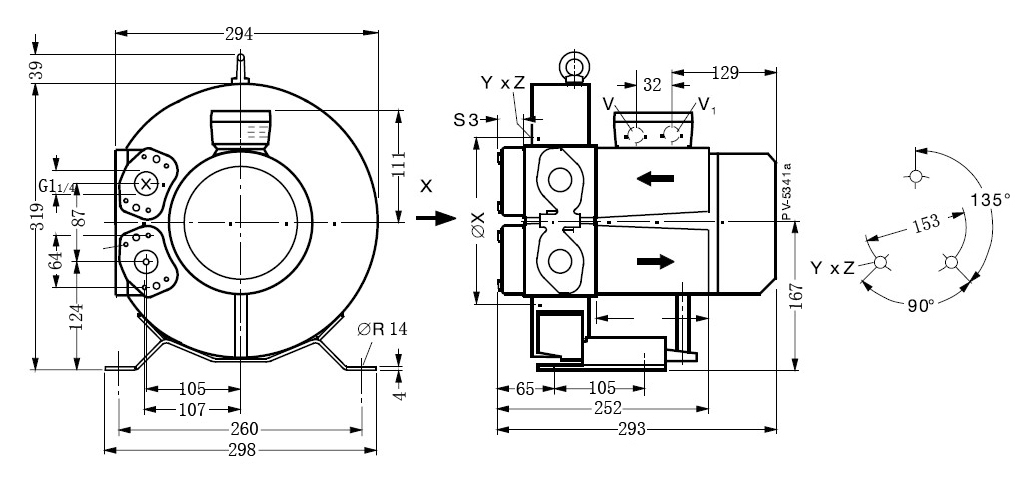

| Dimension(mm): | 293*294*358 |
60Hz
| Stage: | single | Phase: | 1AC |
| Frequency(HZ): | 60 | Output(KW): | 0.63 |
| Voltage(V): | 115/230V | Current(A): | 14.2/7.1 |
| Air flow(m3/h): | 57 | Vacuum(mbar): | -270 |
| Pressure(mbar): | 320 | Sound(dB(A): | 62 |
| Weight(kg): | 18 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 293*294*358 |
