4RB220-0AV75-7
50Hz
| Stage: | Double | Phase: | 1AC |
| Frequency(HZ) : | 50 | Output(KW): | 1.5 |
| Voltage(V): | 115/230 | Current(A): | 19.4/9.7 |
| Air flow(m3/h): | 47 | Vacuum(mbar): | -370 |
| Pressure(mbar): | 600 | Sound(dB(A): | 58 |
| Weight(kg): | 30 | Inlet/outlet(inch): | G1.1/4 |

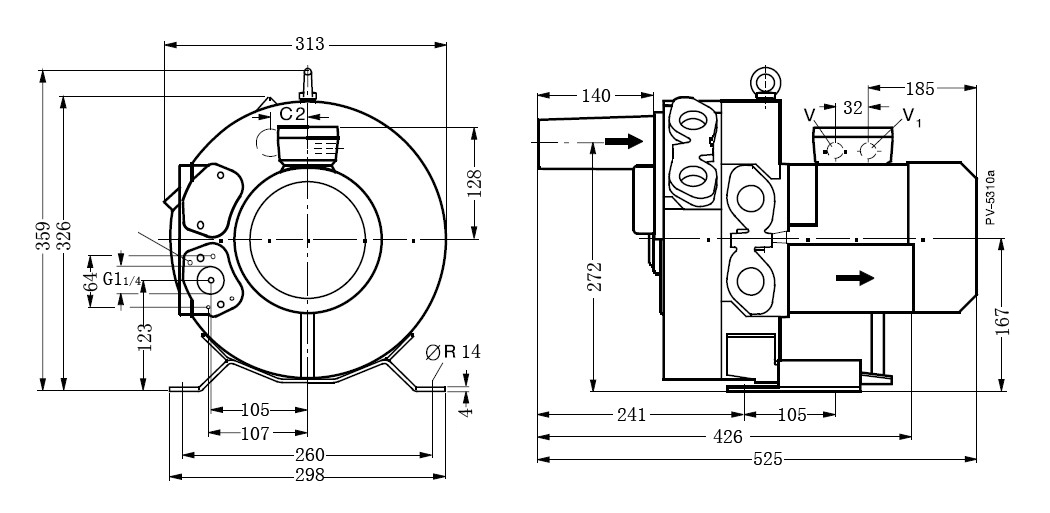

| Dimension(mm): | 525*313*359 |
60Hz
| Stage: | Double | Phase: | 1AC |
| Frequency(HZ): | 60 | Output(KW): | 1.75 |
| Voltage(V): | 115/230 | Current(A): | 20.6/10.3 |
| Air flow(m3/h): | 620 | Vacuum(mbar): | -420 |
| Pressure(mbar): | 660 | Sound(dB(A): | 62 |
| Weight(kg): | 30 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 525*313*359 |
