4RB630-0AH67-8
50Hz
| Stage: | Phase: | 3AC | |
| Frequency(HZ) : | 50 | Output(KW): | 7.5 |
| Voltage(V): | 345-415∆ | Current(A): | 16∆ |
| Air flow(m3/h): | 170 | Vacuum(mbar): | -730 |
| Pressure(mbar): | 1040 | Sound(dB(A): | 72 |
| Weight(kg): | 86 | Inlet/outlet(inch): | G1.1/4 |

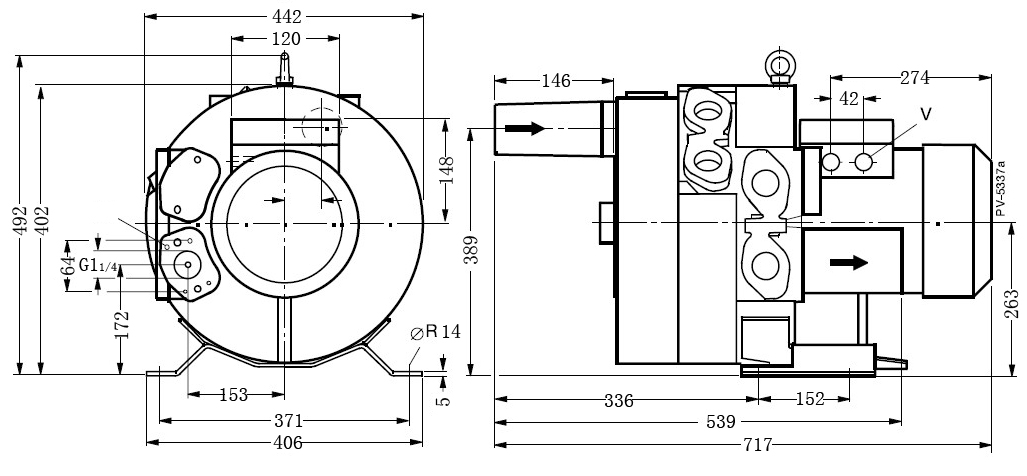

| Dimension(mm): | 717*442*492 |
60Hz
| Stage: | Phase: | 3AC | |
| Frequency(HZ): | 60 | Output(KW): | 8.6 |
| Voltage(V): | 380-480∆ | Current(A): | 16∆ |
| Air flow(m3/h): | 200 | Vacuum(mbar): | -700 |
| Pressure(mbar): | 1040 | Sound(dB(A): | 76 |
| Weight(kg): | 86 | Inlet/outlet(inch): | G1.1/4 |
| Dimension(mm): | 717*442*492 |
