2RB530-7AH16
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 1.3 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 6.6∆/3.8Y |
| Air flow(m3/h): | 270 | Vacuum(mbar): | -120 |
| Pressure(mbar): | 110 | Sound(dB(A): | 65 |
| Weight(kg): | 23 | Inlet/outlet(inch): | G2.0 |

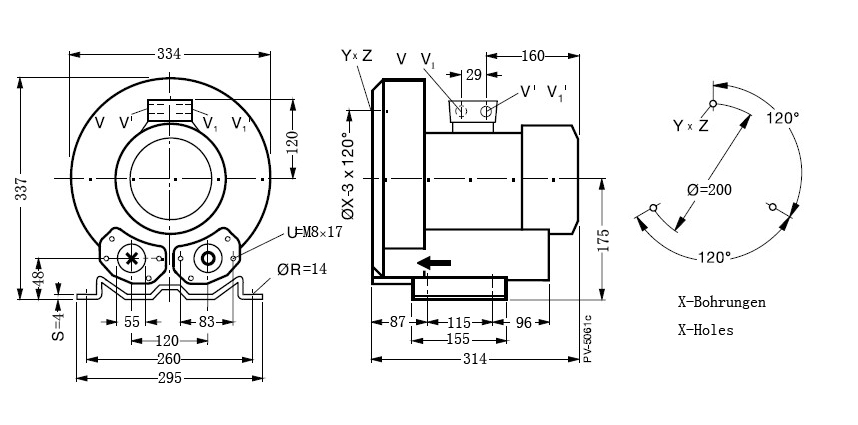

| Dimension(mm): | 334*334*337 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 1.5 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 6.9∆/4.0Y |
| Air flow(m3/h): | 330 | Vacuum(mbar): | -90 |
| Pressure(mbar): | 80 | Sound(dB(A): | 71 |
| Weight(kg): | 23 | Inlet/outlet(inch): | G2.0 |
| Dimension(mm): | 334*334*337 |
