2RB530-7AH36
50Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ) : | 50 | Output(KW): | 2.2 |
| Voltage(V): | 200-240∆/345-415Y | Current(A): | 9.7∆/5.6Y |
| Air flow(m3/h): | 270 | Vacuum(mbar): | -220 |
| Pressure(mbar): | 230 | Sound(dB(A): | 65 |
| Weight(kg): | 26 | Inlet/outlet(inch): | G2.0 |

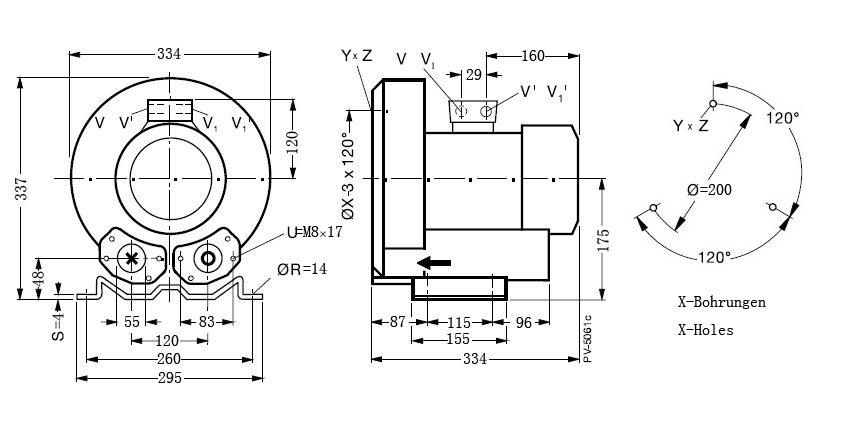

| Dimension(mm): | 365*334*337 |
60Hz
| Stage: | single | Phase: | 3AC |
| Frequency(HZ): | 60 | Output(KW): | 2.55 |
| Voltage(V): | 220-275∆/380-480Y | Current(A): | 10.3∆/6.0Y |
| Air flow(m3/h): | 330 | Vacuum(mbar): | -260 |
| Pressure(mbar): | 250 | Sound(dB(A): | 71 |
| Weight(kg): | 26 | Inlet/outlet(inch): | G2.0 |
| Dimension(mm): | 365*334*337 |
